Products
PE Pipeline series
   Product performance
    PE Pipes For Water Supply characteristic PE Gas Pipes characteristic
    1、Corrosion-resistant and accumulating the scale 1、It is light to conduct oneself with dignity
    2、Have long performance life 2、Have long performance life
    3、Clean hygiene,breed the microorganism 3、Do not take antiseptically
    4、Antistatic 4、Pipe but each, systematic integrality kind
    5、Able to bear the low temperature 5、The earthwork is measured and lacked , construction is simple
    6、Resist the earthquake , resist the setting of ground 6、Maintain and lack or not need to maintain
    7、It is light to conduct oneself with dignity, it is easy to carry ,install Can apply to the conveyer system of city gas extensively . Very right
    8、Connect and lack , reduce the probability of permeating insert the old metal pipe , repair the old gas piping system while shutting.
    9、Lose water pressure strength to lose small Can reduce excavating and earthwork amount of backfill in a large amount reduce by a wide margin
    Can apply to various kinds of water supply,sewage disposal extensively way expenses.
    Sink such projects as the sea,etc.

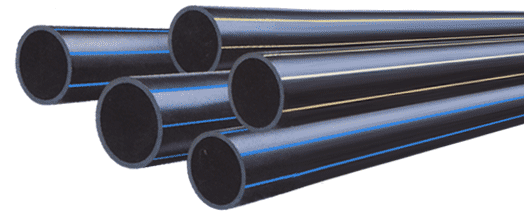

Straight pipeline of PE
PE R expands the pipeline
Specifications Of PE Pipes For Water Supply
norminal
 wall thickness
Outside Diameter Pe80 Pe100 Pe63 Pe80 Pe100
Outside Diameter PNO.6 PNO.8 PN1.0 PN1.25 PN1.6
(Dn) (Mpa) (Mpa) (Mpa) (Mpa) (Mpa)
20 2.3 -- -- -- --
25 2.3 -- -- -- --
32 3.0 -- -- -- --
40 3.7 -- -- -- --
50 4.6 -- -- -- --
63 5.8 4.7 -- -- --
90 8.2 6.7 5.4 4.3 --
110 10.0 8.1 6.6 5.3 4.2
160 14.6 11.8 9.5 7.7 6.2
200 18.2 14.7 11.9 9.6 7.7
225 20.5 16.6 13.4 10.8 8.6
250 22.7 18.4 14.8 11.9 9.6
280 25.4 20.6 16.6 13.4 10.7
315 28.6 23.2 18.7

15.0

 12.1
450 40.9 33.1 26.7 21.5 17.2
500 45.4 36.8 29.7 23.9 19.1
560 50.8 41.2 33.2 26.7 21.4
630 57.2 46.3 37.4 30.0 24.1
710 -- 52.2 42.1 33.9 27.2
800 -- 58.8 47.4 38.1 30.6
Specification of PE Gas Pipe


Norminal Outside Diameter
(De)

 wall thickness
PE80、PE100
PN0.2(Mpa) PN0.4(Mpa)
75 4.3 3.0
90 5.2 8.2
110 6.3 10.0
125 7.1 11.4
160 9.1 14.6
200 11.4 18.2
250 14.2 22.7
315 17.9 28.6
400 22.8 36.3

XingYu PE pipes for water supply、pipes fittings

    Our production use PE pipe material and the suitable scope of pipe fitting to water transport for municipal water supply, building water supply, agricultural irrigation and chemical fluid. PE pipe fitting have Heat melts the connecting type、Flexible faucet insert type、Active connection type(adopt PE and steel orifice plate make do) 3 kinds of form.
Our company recommends：

Grade of material Connect the form dn,mm MPa Scope of application
PE80 Heat melts the connecting can supply the straight tube or the serpentine tube 20 25 32 50 63 0.6 0.8 1.0 1.25 Project above ground.Such as the project of reading the ammeter directly,use the pipes in the building room etc.
PE100/80 DN32-63mm Active connection DN≥90mm Flexibility Seal completely circle connecting 32 63 90 110 160 200 315 400 0.8 1.0 The city water supply,especially is community's network of transport the pipes for water
PE100/80 Heat melts the connecting can supply the serpentine tube 90 110 160 200 315 400 500 0.6 0.8 1.0 1.25 1.6 Supply water at a long distance.The pipesline is simple,the furcation less,geology is complicated,the project is relatively centralized,comparatively suitable under the easy occasion of related machinery of construction.

1. Heat melts the connecting type: The pipe fittings cost is slightly low,but the fabrication cost of the installation cost is high,there is suitable environment for a electric heat melting machine.

2. Flexible faucet insert type: The PE pipe fittings install the convenient,fast,reduce the difficult problem of the fabrication cost of the project,expanding with heat and contract with cold etc.

3. Active connection type: Install the convenient,the scope of the appropriate usage is small(φ32,φ63), generally use more while entering the family.
